Car Parktronic Parking Sensor 4 Sensors 22mm LED Backlight Display Reverse Backup Radar Monitor System for vw saab bmw hyundai


SKU: 3256805026992910


  • OSD Language: English
  • Talk Range: Detecting Distance 0-2.5m / 0-8.2ft
  • Material Type: Plastic
  • Model Name: Parking Radar
  • Type: Visible
  • Brand Name: EAFC
  • Origin: Mainland China
  • Certification: NONE



4 sensor system, double CPU and advanced chipset for enhanced coverage and detection (0-2m).
With digital colored LED display (number & light).
Help to prevent dangerous and costly collisions.
Help to provide increased safety for passengers, pedestrians and family members who happen to be around the moving vehicle.
Detect small children and low walls as well.
Anti-freeze and rain proof.
Easy to install.
A saw drill head included.


Type: Car parking radar

Material: Plastic
Quantity: 1pcs
Color: Black
Rate Voltage: 12V DC
Rate Operating Range: 9V – 16V DC
Rate Current: 20mA – 200mA
Detecting Distance: 0-2.5m / 0-8.2ft
Ultrasonic Frequency: 40KHz
Control Box Working Temperature: -30 – 80 celcius
Display Working Temperature: -20 – 70 celcius
Sensor Diameter: 22mm
LED Display Size: 9*1.5cm / 3.5*0.6"
Control Box Size: 9*6*2.2cm / 3.5*2.4*0.9"
Display Weight: 0.088kg / 3.1oz
1.No obstacle, have  BIBI sound
Answer: Red connect to turn lights, black connect  the whole car lights, do not connect the negative.
2. No obstacle,display other number

(1) The display shows different numbers, such as E03-E07,

Answer:because the Electric current is not stable, buy a regulator specifically connected to the lights, do not shunt with the other

(2) display same number
Answer: Sensors should have 50 cm high, with the universal meter amount,sensors should be level, otherwise it will detect the ground.

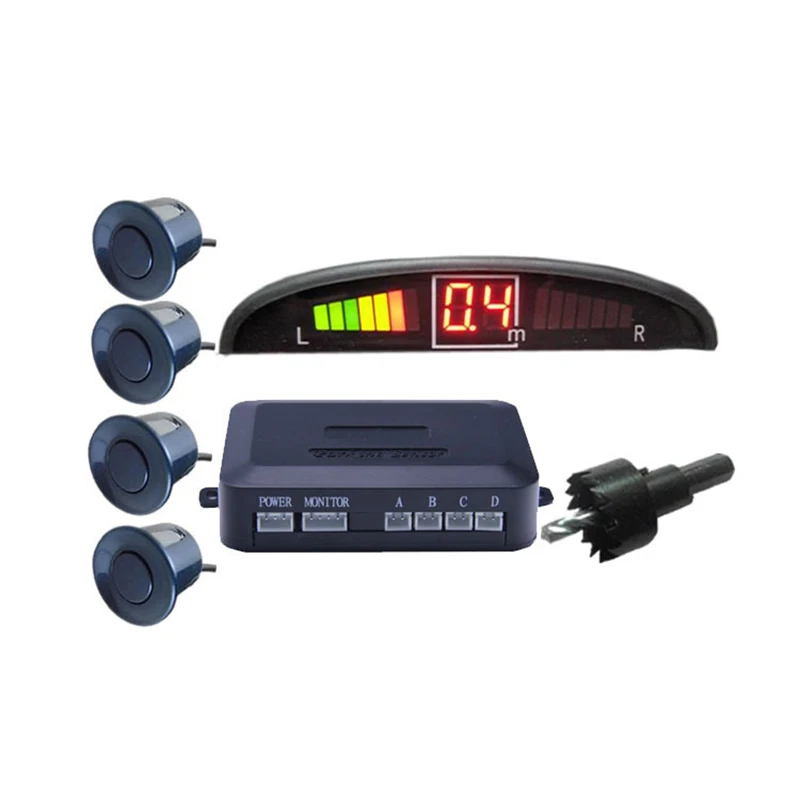

1*Main Control Box
1*LED Display Indicator
4*Parking Sensors with 2.5M/8.2ft Line
1*Hole Saw
1*A saw drill head
1*Power Cable
2*Double Side Sticker
